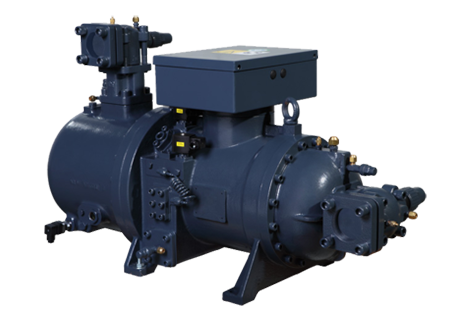

RC2 series semi-hermetic screw refrigeration compressor

HANBELL's RC2 series semi-hermetic screw refrigeration compressor currently has more than 20 models; each compressor can match two high-efficiency motors A or B, so that the RC2 series expands to more than 40 models.

Newly launched model RC2-1020-1530, compared with standard RC2 models, have similar appearance, higher performance and larger displacement.


Features
Model Specification
Catalogue & Technical Manual
Drawing


Multi-type and large discharge volume

RC2 series compressors have increased from 14 models of RC series to more than 40 models. On the basis of the original high discharge volume models, 4 models with maximum discharge volume of 1527 m3/hr (50Hz) have been developed.



High-efficient motor

Compared with the RC series compressor, the motor of RC2 series compressor has higher efficiency, which can ensure that the compressor operate effectively. In addition, Hanbell supply two type (A or B) motor for choice to meet different working conditions.

To ensure RC2 compressor operate stably and high-efficiently in harsh conditions for a long time, whole series motor is developed with low-loss silicon steel core, motor cooling channel, refrigerant diversion design.



Application of refrigerant

Besides R22, RC2 compressor is also suitable for other refrigerant such as R134a, R407C, R404A, R507 etc.



New protection module

RC2 compressor is developed with new protection module INT69HBY Diagnose. Based on original protection module INT69, INT69HBY Diagnose is updated with protection for anti-phase and phase-loss, new fault record function; which can protect the compressor more comprehensively.



New high voltage model

Newly developed model RC2-1270HV/1530HV can meet the special requirement of voltage such as 6KV/10KV; more information about high voltage model, please contact with Hanbell directly.







Model



RC2- 100



RC2- 140



RC2- 180



RC2- 200



RC2- 230



RC2- 260



RC2- 300



RC2- 310



RC2- 340



RC2- 370



RC2- 410



RC2- 470



RC2- 510



RC2- 550



RC2- 580



RC2- 620



RC2- 710



RC2- 790



RC2- 830



RC2- 930



RC2- 1020



RC2- 1130

RC2-

1270 (HV)

RC2-

1530 (HV)



Rotation   speed(50Hz)



Rpm



2950

COMPRESSOR

Discharge   volume(50Hz)



m3/h



98



137



180



193



230



257



293



308



339



366



407



471



508



549



583



619



713



791



825



929



1017



1122



1268



1539

VI


2.2      3.0    3.5

Capacity

control

Step



%



33,66,100



25,50,75,100

Stepless



%



33~100



25~100

Motor

Type

--

3-phase 2-pole AC asynchronous motor

Start   model

--

Y-△

Y-△ DOL



Voltage（50Hz)

--



380

380

6000

10000

Insulation   level

--

Level F

Protection   module

--



PTC

Oil fuel quantity



L



7



7



7



8



14



14



16



14



16



16



15



18



20



23



20



23



28



28



28



28



40



40



53



53

Oil heater



W



300

Pressure test



Bar



35
